TECHANICAL SPECIFICATION
- MODLE : Q330 DUEL NOZZLE DISPENSER
- SIZE INLET : 1.5"
- FLOW RATE : 65LPM
- ACCURACY : 0.2% +/-
- POWER : 230V AC SINGLE PHASE
- DIGITAL DISPLAY WITH LITER, AMOUNT, PRICE, PRINTER
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- FLAME PROOF MOTOR
- PESO AND W&M APPROVED BY GOVT. OF INDIA
- APPLICATION : DIESEL & PETROL FUEL
- MAKE : TOKHIEM BRAND
TECHANICAL SPECIFICATION
- MODLE : Q130 SINGLE NOZZLE DISPENSER
- SIZE INLET : 1.5"
- FLOW RATE : 65LPM
- ACCURACY : 0.2% +/-
- POWER : 12V DC
- DIGITAL DISPLAY WITH LITER, AMOUNT, PRICE, PRINTER
- TYPE : PTO OPERATED
- PESO AND W&M APPROVED BY GOVT. OF INDIA
- APPLICATION : DIESEL & PETROL FUEL
- MAKE : TOKHIEM BRAND
TECHANICAL SPECIFICATION
- MODLE : CMD1687SK-G KAMAL
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE : UP TO 70LPM
- ACCURACY : 0.2% +/-
- POWER : 12V DC AND 230V SINGLE PHASE OPTIONAL
- DIGITAL DISPLAY WITH LITER, AMOUNT, PRICE, PRINTER
- TYPE : PTO OPERATED, 12V DC AND 230V PUMP OPTIONAL
- W&M APPROVAL UNDER PROCESS
- APPLICATION : DIESEL FUEL.
- MAKE : KAMAL - AHMEDABAD
TECHANICAL SPECIFICATION
- MODLE : KAMAL CUBE 12V/K600B
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE : 50LPM
- ACCURACY : 0.5% +/- FOR NON COMMERCIAL USE
- POWER : 12V DC AND 230V SINGLE PHASE OPTIONAL
- 4 DIGIT DIGITAL RESETABLE WITH 8 DIGIT TOTAL NON RESETABLE
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : DIESEL FUEL.
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION
- MODLE : BIPUMP 12V DC /K600B
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE : 75LPM
- ACCURACY : 0.5% +/- FOR NON COMMERCIAL USE
- POWER : 12V DC BATTERY OPERATEDL
- 4 DIGIT DIGITAL RESETABLE WITH 8 DIGIT TOTAL NON RESETABLE
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : DIESEL FUEL.
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION
- MODLE : PIUSI CUBE 12V/K33
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE : 50LPM
- ACCURACY : 1% +/- FOR NON COMMERCIAL USE
- POWER : 12V DC AND 230V SINGLE PHASE OPTIONAL
- 3 DIGIT ANALOG RESETABLE WITH 7 DIGIT TOTAL NON RESETABLE
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : DIESEL FUEL.
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION
- MODLE : K44 - KAMAL HIGH ACCURACY
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE : 65LPM
- ACCURACY : 0.2% +/-
- POWER : 12V DC AND 230V SINGLE PHASE OPTIONAL
- 4 DIGIT ANALOG RESETABLE WITH 7 DIGIT TOTAL NON RESETABLE
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- W&M APPROVED BY GOVT. OF INDIA
- IP55 MOTOR PROTECTION
- APPLICATION : DIESEL FUEL.
- MAKE : KAMAL - INDIA
TECHANICAL SPECIFICATION
- MODLE : ST PANTHER 230V/K33 WITH CLEAN CAPTOR FILTER
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE : 50LPM
- ACCURACY : 1% +/- FOR NON COMMERCIAL USE
- POWER : 230V SINGLE PHASE & 12VDC OPTIONAL
- 3 DIGIT ANALOG RESETABLE WITH 7 DIGIT TOTAL NON RESETABLE
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : DIESEL FUEL.
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION
- MODLE : ST PANTHER 230V/K33
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE : 50LPM
- ACCURACY : 1% +/- FOR NON COMMERCIAL USE
- POWER : 230V SINGLE PHASE & 12VDC OPTIONAL
- 3 DIGIT ANALOG RESETABLE WITH 7 DIGIT TOTAL NON RESETABLE
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : DIESEL FUEL.
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION
- MODLE : ST BP3000 INLINE 12V/K33
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE : 40LPM
- ACCURACY : 1% +/- FOR NON COMMERCIAL USE
- POWER : 12V DC BATTERY OPERATEDL
- 3 DIGIT ANALOG RESETABLE WITH 7 DIGIT TOTAL NON RESETABLE
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : DIESEL FUEL.
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION
- MODLE : BP3000 INLINE 12V DC BATTERY KIT
- SIZE I/O : 3/4" BSP
- FLOW RATE : 40LPM
- POWER : 12V DC BATTERY OPERATED
- 4M DELIVERY PIPE WITH SELF 2000 MANUAL NOZZLE
- 2M SUCTION PIPE WITH FOOT STRAINER
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : DIESEL FUEL.
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION
- MODLE : PANTHER 12V DC BATTERY KIT
- SIZE I/O : 1" BSP
- FLOW RATE : 50LPM
- POWER : 12V DC BATTERY OPERATED
- 4M DELIVERY PIPE WITH SELF 2000 MANUAL NOZZLE
- 2M SUCTION PIPE WITH FOOT STRAINER
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : DIESEL FUEL.
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION
- MODLE : BIPUMP 12V DC BATTERY KIT
- SIZE I/O : 1" BSP
- FLOW RATE : 80LPM
- POWER : 12V DC BATTERY OPERATED
- 4M DELIVERY PIPE WITH 11A AUTO NOZZLE NOZZLE
- 2M SUCTION PIPE WITH FOOT STRAINER
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : DIESEL FUEL.
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION

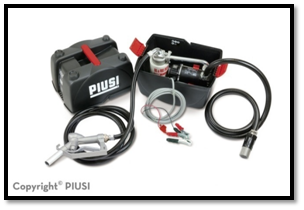

- MODLE : PIUSIBOX PRO 12V DC
- SIZE I/O : 3/4" BSP
- FLOW RATE : 40LPM
- POWER : 12V DC BATTERY OPERATED
- 4M DELIVERY PIPE WITH SELF 2000 MANUAL NOZZLE
- 2M SUCTION PIPE WITH FOOT STRAINER
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : DIESEL FUEL.
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION

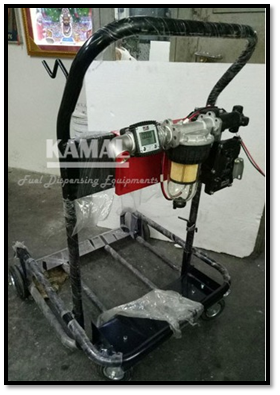

- MODLE : EX50 12V DC / K24 WITH TROLLEY KIT
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE : 50LPM
- ACCURACY : 0.5% +/- FOR NON COMMERCIAL USE
- FILTER : 5MICRON FILTER KIT
- POWER : 12V DC BATTERY OPERATED
- 4 DIGIT DIGITAL RESETABLE WITH 8 DIGIT TOTAL NON RESETABLE
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- ATEX APPROVED PUMP
- APPLICATION : DIESEL, PETROL AND JET FUEL
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION
- MODLE : DRUM KIT BP3000 INLINE 12V
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE : 40LPM
- POWER : 12V DC BATTERY OPERATED
- 4M DELIVERY PIPE WITH MANUAL NOZZLE
- SUTION PIPE WITH FOOT VALVE
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : DIESEL FUEL.
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION
- MODLE : DRUM KIT PANTHER 230V/K33
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE : 50LPM
- ACCURACY : 1% +/- FOR NON COMMERCIAL USE
- POWER : 230V AC SINGLE PHASE
- 3 DIGIT ANALOG RESETABLE WITH 7 DIGIT TOTAL NON RESETABLE
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : DIESEL FUEL.
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION
- MODLE : DRUM KIT VISCOMATE 230V
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE UP TO : 25LPM
- POWER : 230V AC SINGLE PHASE
- DIGITAL METER K400 : OPTIONAL
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : LUBRICATE OIL
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION
- MODLE : DRUM KIT PANTHER 230V/K33 WITH TROLLEY
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE : 50LPM
- ACCURACY : 1% +/- FOR NON COMMERCIAL USE
- POWER : 230V AC SINGLE PHASE
- 3 DIGIT ANALOG RESETABLE WITH 7 DIGIT TOTAL NON RESETABLE
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : LUBRICATE OIL
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION
- MODLE : DRUM ST KIT SUZZARABLUE 230V
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE : 25LPM
- DIGITAL METER K24 : OPTIONAL
- POWER : 230V AC SINGLE PHASE
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : LUBRICATE OIL
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION
- MODLE : DRUM ST KIT SUZZARABLUE 230V
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE : 25LPM
- DIGITAL METER K24 : OPTIONAL
- POWER : 230V AC SINGLE PHASE
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : LUBRICATE OIL
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION
- MODLE : CABINET SUZZARABLUE 230V/K24
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE : 25LPM
- ACCURACY : 1% +/- FOR NON COMMERCIAL USE
- POWER : 230V AC SINGLE PHASE
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- IP55 MOTOR PROTECTION
- APPLICATION : UREA OR ADBLUE OR WATER
- MAKE : PIUSI - ITALY
TECHANICAL SPECIFICATION
- MODLE : EX50 12V DC / K24 WITH DRUM KIT
- SIZE I/O : 1" BSP FEMALE
- FLOW RATE : 50LPM
- ACCURACY : 0.5% +/- FOR NON COMMERCIAL USE
- POWER : 12V DC BATTERY OPERATED
- FILTER : 5MICRON PAPER FILTER KIT
- TYPE : SELF-PRIMING VANE PUMP INBUILT BYPASS VALVE
- ATEX APPROVED PUMP
- APPLICATION : DIESEL, PETROL AND JET FUEL
- MAKE : PIUSI - ITALY
